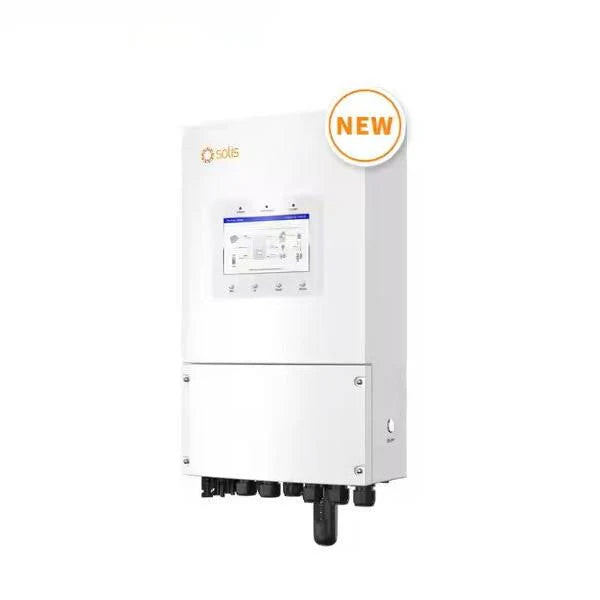

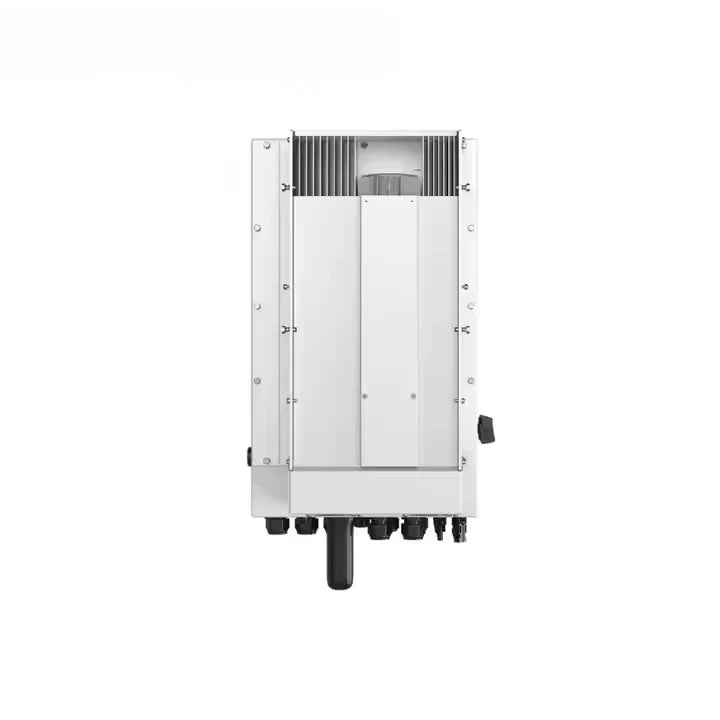

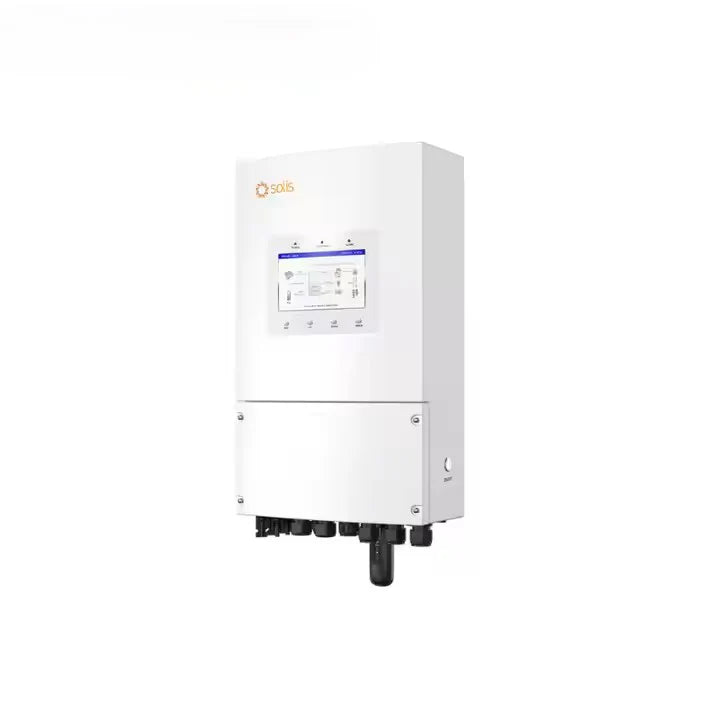

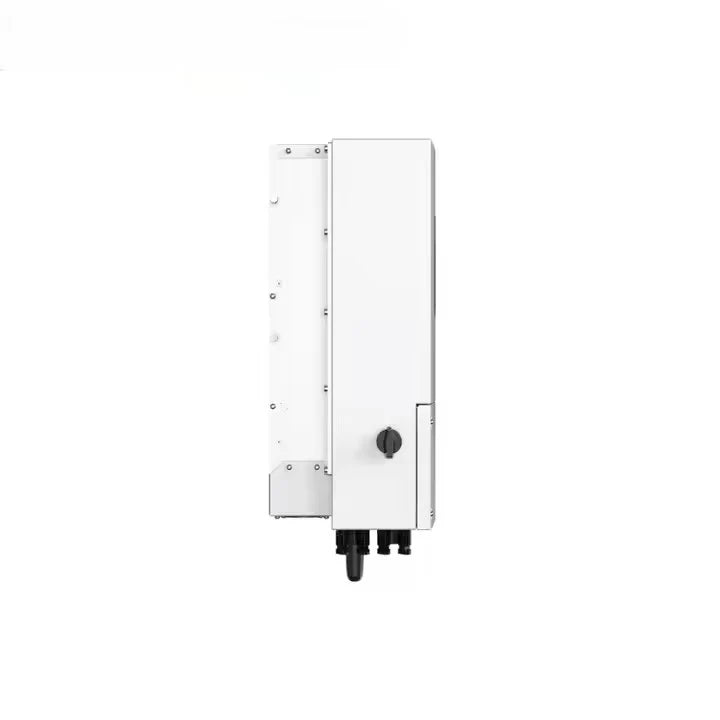

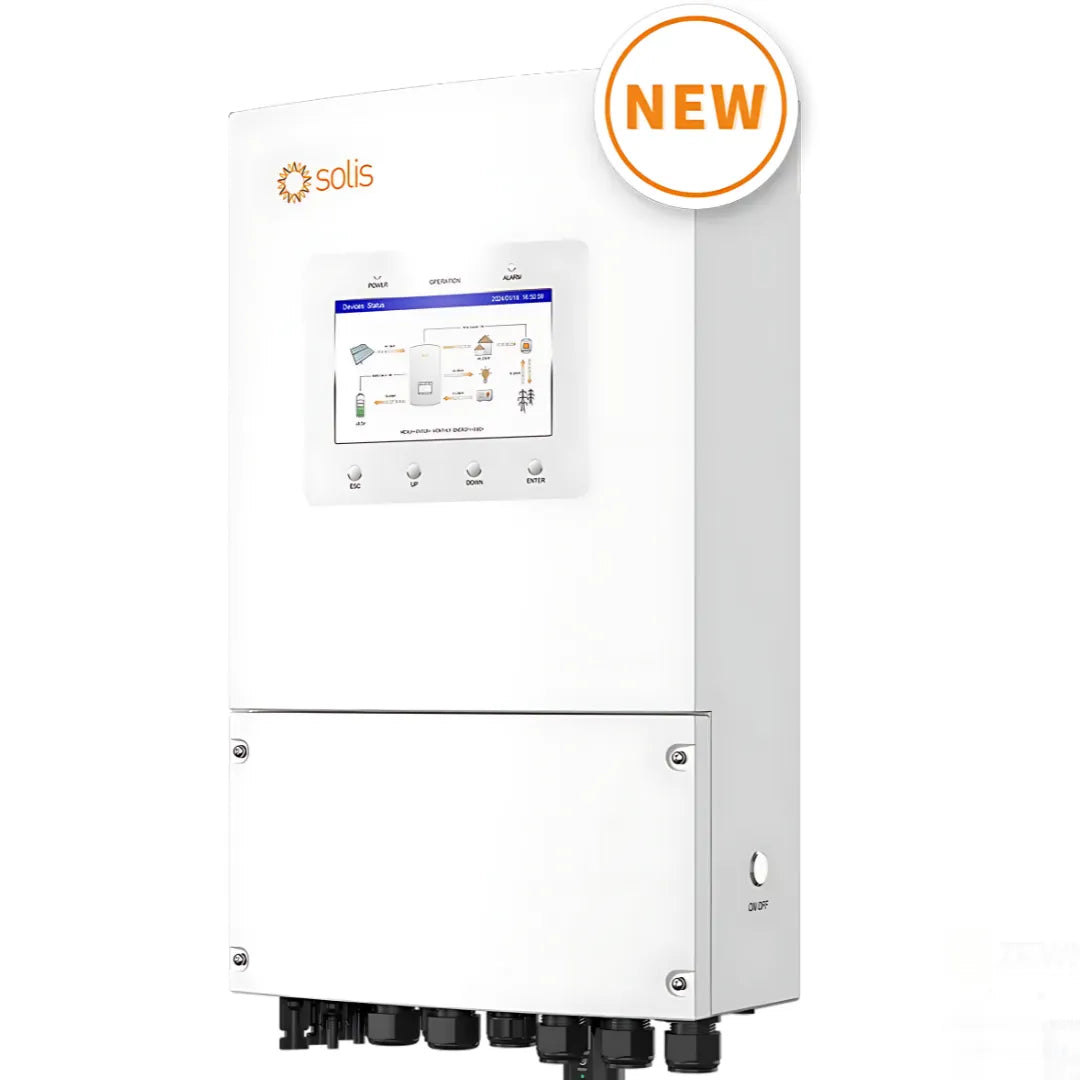

Solis S6-EH1P6K-L-PLUS 6KW hybrid Solar Inverter 2025 Model

Vendor: Solis
SKU: Solis S6-EH1P6K-L-PLUS 6KW
Availability: Out Of Stock
Product type: Inverter
Rs.264,999.00
Rs.325,000.00
Rs.264,999.00
Save Rs.60,001.00
Please hurry! Only 0 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: Rs.264,999.00
10 customers are viewing this product

All Pakistan Delivery Available

Cash on delivery is available

Free Returns

Learn More.
Solis S6-EH1P6K-L-PLUS 6KW hybrid Solar Inverter 2025 Model

Solis S6-EH1P6K-L-PLUS 6KW hybrid Solar Inverter 2025 Model

Rs.325,000.00 Rs.264,999.00

Solis S6-EH1P6K-L-PLUS 6KW hybrid Solar Inverter 2025 Model

Rs.325,000.00 Rs.264,999.00

Solis S6-EH1P6K-L-PLUS 6KW hybrid Solar Inverter 2025 Model



Please Whatsapp Text Message Along With Product Picture On 03191101122 To Get Lowest Price














Features:

  • Generator connectivity with multiple input methods and automatic generator On/Off control
  • Automatic UPS switching 10 second 200% surge power backup overload capability
  • Supports 1ph and 3ph flexible connection with max 36kW in parallel
  • Up to 135A max charge/discharge current 6 customizable charge/discharge time settings
  • Compatible with lead-acid and lithium batteries, with multiple battery protection features
  • Supports peak shaving control in both "self-use" and "generator" mode

Download PDF

Specifications:

Models 6K
Input DC (PV side)
Recommended max. PV array size 12 kW
Max. usable PV input power 9.6 kW
Max. input voltage 500 V
Rated voltage 330 V
Start-up voltage 90 V
MPPT voltage range 90 - 435 V
Max. input current 16 A / 16 A
Max. short circuit current 20 A / 20 A
MPPT number / Max. input strings number 2 / 2
Battery
Battery type Li-ion / Lead-acid
Battery voltage range 40 - 60 V
Max. charge / discharge power 6 kW
Max. charge / discharge current 135 A
Communication CAN / RS485
Output AC (Grid side)
Rated output power 6 kW
Max. apparent output power 6 kVA
Operation phase L/N/PE
Rated grid voltage 220 V / 230 V
Rated grid frequency 50 Hz / 60 Hz
Rated grid output current 27.3 A / 26.1 A
Max. output current 27.3 A / 26.1 A
Power factor > 0.99 (0.8 leading - 0.8 lagging)
THDi < 2%
Input AC (Grid side)
Input voltage range 187 - 253 V
Max. input current 40 A
Frequency range 45 - 55 Hz / 55 - 65 Hz
Output AC (Back-up)
Rated output power 6 kW
Max. apparent output power 2 times of rated power, 10 s
Back-up switch time < 4 ms
Rated output voltage L/N/PE, 220 V / 230 V
Rated frequency 50 Hz / 60 Hz
Rated output current 27.3 A / 26.1 A
Max. AC passthrough current 40 A
THDv (@linear load) < 2%
Efficiency
Max. efficiency 96.2%
EU efficiency 96.1%
BAT charged by PV / AC max. efficiency 95.3% / 93.9%
BAT discharged to AC max. efficiency 93.8%
Protection
Ground fault monitoring Yes
DC reverse-polarity protection Yes
Integrated AFCI 2.0 Optional
Protection class / Over voltage category I / II (PV and BAT), III (MAINS and BACKUP and GEN)
General Data
Dimensions (W × H × D) 335 × 560 × 253 mm
Weight 23.5 kg
Topology High frequency isolation (for battery)
Operating ambient temperature range -40 ~ + 60°C
Ingress protection IP66
Cooling concept Intelligent fan-cooling
Max. operation altitude 3000 m
Grid connection standard NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, NBR 16149, NBR 16150
Safety / EMC standard IEC/EN 62109-1/-2, EN 61000-6-2/-3
Features

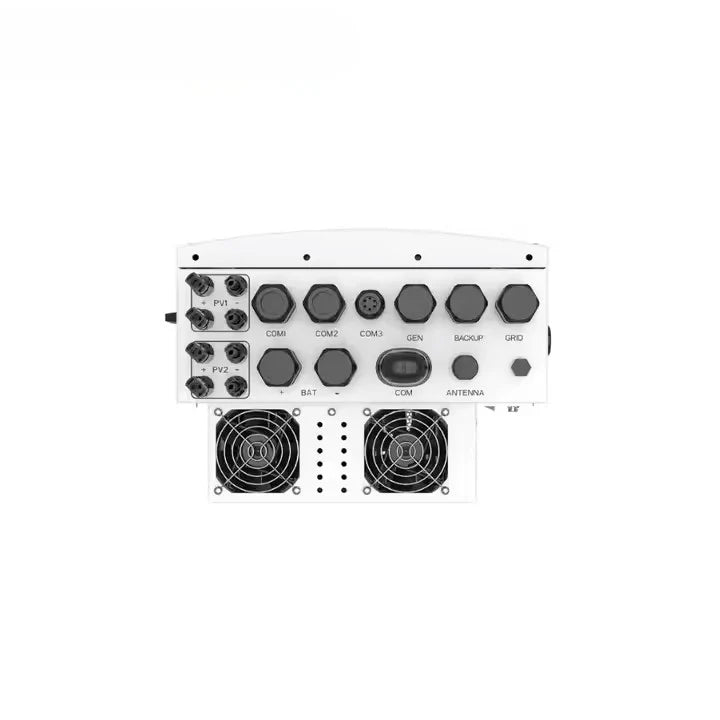

DC connection MC4 plug (PV port) / Terminal Block (BAT port)
AC connection Terminal Block
Display 7.0" LCD display & Bluetooth + APP
Communication RS485, CAN, Optional: Wi-Fi, GPRS, LAN
